Maintainer: Seungyong Hwang (syhwang@ucdavis.edu)
Reference: https://arxiv.org/pdf/2004.04258.pdf
Codebase is maintained in the git repository.
Data: in /data folder:
- D-MRI data:
- SLF_L_data.nii.gz: Synthetic image for SLF in the left hemisphere (original signals with artificially added small noises)
- bvals: b-values
- bvecs: gradient directions
- Tractography masks:
- SLF_L.nii.gz, SLF_R.nii.gz: Masks of ROI (Superior Longitudinal Fasciculus in each hemisphere) from JHU probabilistic white matter tractography atlas.
- SLF_L_seed.nii.gz, SLF_R_seed.nii.gz, SLF_L_target.nii.gz, SLF_R_target.nii.gz: Streamline selection masks of SLF from AutoPtx.
- Extracted peaks of estimated FODs: Inputs for the tracking algorithm
- peaks.mat
Example scripts: in /example_scripts folder:
-
example_simulation_fib2.py: Simulation example – true FOD has two peaks
-
example_simulation_fib3.py: Simulation example – true FOD has three peaks
-
example_plot_fod.m: Matlab script to plot estimated FOD
-
example_HCP_dMRI_download_preprocess.R: HCP application – download and preprocess D-MRI data
-
example_HCP_analysis.py: HCP application – FOD estimation and peak detection
- Input: bvals, bvecs, SLF_L_data.nii.gz
- Output: peaks.mat
-
example_HCP_tractography.R: HCP application – tractography by DiST algorithm
- Input: peaks.mat
- Output: tractography results
Python functions: in /python folder:
- dwi_simulation.py: Functions for simulating D-MRI signals and evaluation of simulation results of FOD estimation.
- fod_estimation.py: Functions for the three FOD estimation methods BJS, SHridge and superCSD.
- fod_HCP_application.py: Functions for HCP data processing including: (i) Estimation of response function parameters; (ii) ROI information organization; (iii) Gradient direction extraction according to b-value groups
- FOD_peak.py: Functions for the peak detection algorithm
- sphere_harmonic.py: Functions to evaluate the spherical harmonic basis on equal-angular spherical grid
- sphere_mesh.py: Functions for equal-angular sampling schemes on the sphere
Matlab functions: in /matlab folder:
- fod_plotting.m: Functions for plotting (estimated) FOD
R package: in /dmri.tracking-r
- dmri.tracking_0.1.0.tar.gz: R package for the DiST tractography algorithm. (see github repository)
You can install the development version with:
devtools::install_github("vic-dragon/dmri.tracking")
If the above command does not work, try the following command
remotes::install_github("vic-dragon/dmri.tracking@main")
- R(version 3.6.2)
- required R packages: rgl, R.matlab, dmri.tracking, neurohcp, fslr
- python3(3.7.6)
- required python3 packages: numpy, scipy, tqdm, nibabel, warnings
- FSL(version 6.0.3):
- also include FSLeyes
- Xquartz (version 2.7.11):
- needed for FSL
- matlab(R2017a):
- only needed for plotting (estimated) FOD
In this document, we briefly describe the HCP D-MRI data and the steps to download D-MRI data from HCP database, the D-MRI data preprocessing, FOD estimation, tractography and feature extraction.
The WU-Minn Human Connectome Project (HCP) has eddy current-corrected 3T D-MRI data of 1206 healthy young adults (Age: 22 ~ 35) from 457 unique families. D-MRI data is obtained under 3 different b-values (1,000s/m**m2, 2,000s/m**m2, 3,000s/m**m2) on a 145 × 174 × 145 3D grid with voxel resolution 1.25 × 1.25 × 1.25m**m3. For each b-value, 90 gradient directions and 6 b0 images are available.

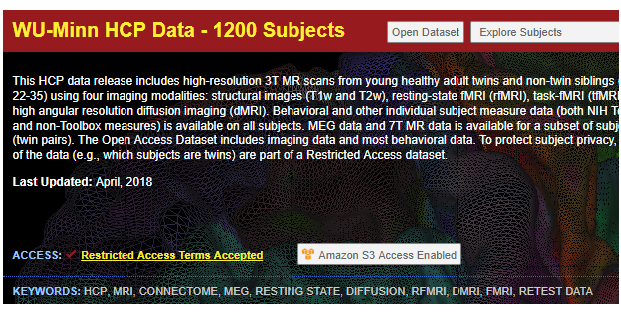

Step 1: Obtain AWS access credential – access key id and secret key: Login ConnectomeDB account and then click the Amazon S3 Access Enabled box. If you do not have an account, you need to first create one.
Step 2: Install the neurohcp R package for batch downloading from ConnectomeDB.
Step 3: Obtain subject ID using the hcp_1200_scanning_info function in the neurohcp package.
library(neurohcp)
set_aws_api_key(access_key = "your_access_key", secret_key = "your_secret_key")
hcp_info=hcp_1200_scanning_info # information of the database
hcp_id=hcp_info$id #ID of available subjects
Two functions are used to download data from ConnectomeDB:
-
download_hcp_dir: To download all files in a certain directory
-
download_hcp_file: To download a certain file
For each subject, the following files (approximately, 1.5GB) are relevant to our analysis:
- T1w_acpc_dc_restore_1.25.nii.gz: T1w image (structural volume sampled at the same resolution as the diffusion data)
- data.nii.gz: diffusion weighted image
- bvecs: gradient directions
- bvals: b-values
- nodif_brain_mask.nii.gz: T2w extracted brain mask
## Download D-MRI directory of a subject
# "100307" is the subject ID; an output directory should also be specified: default: tempfile()
download_hcp_dir("HCP/100307/T1w/Diffusion",verbose=FALSE, outdir="user_path")
## Downlaod the T1w image of a subject
# an output file path/name should also be specified: default: NULL
download_hcp_file("HCP/100307/T1w/T1w_acpc_dc_restore_1.25.nii.gz", verbose = FALSE,
destfile="user_path/out_file_name")
Notes: Sometimes, the files of a subject found through hcp_1200_scanning_info could not be downloaded through either download_hcp_dir or download_hcp_file function. This problem occurs due to one of the two reasons:
- Data of this subject have not been registered on ConnectomeDB.
- Data have not been registered with proper directory path, even though the data are available on ConnectomeDB.
You can check whether data of a subject are available on ConnectomeDB by using the hcp_list_dirs function: If the result from hcp_list_dirs does not have any value in parsed_resultContent**sKey[[1]], it means that you will have to manually check the availability of files.
dir_info=hcp_list_dirs(paste0("HCP/100307/T1w/Diffusion"))
#Check whether D-MRI can be downloaded thorugh the "download_hcp_dir" function.
is.null(dir_info$parsed_result$ListBucketResult$Contents$Key[[1]])
This section describes how to process D-MRI data from the Human Connectome Project (HCP) database. We use FSL, a library of tools for MRI, fMRI and D-MRI imaging data, as well as its R wrapper, the fslr R package from neuroconductor. Both FSL and fslr need to be installed.
library(fslr)
Notes: Processing time is measured under a Xeon 72 core, 2.3GHz, 256GB RAM linux server.
D-MRI data from HCP database have already been (minimally) processed. The detailed information about the HCP minimal preprocessing pipeline can be found in Glasser et al. 2013 and on page 133 of the HCP reference manual. The scripts are available at HCPpipelines git repository.
These steps include:
- Intensity normalization
- EPI distortion correction (TOPUP algorithm in FSL)
- Eddy current correction (EDDY algorithm in FSL)
- Gradient nonlinearity correction
- Registration (6 DOF rigid body) of the mean b0 image (T2-weighted image) to native volume T1-weighted image by FSL FLIRT BBR and FreeSurfer bbregister algorithms; and the transformation of diffusion data, gradient deviation, and gradient directions to the 1.25mm structural space (T1w space). Moreover, (T1w co-registered) T2w extracted brain mask ‘nodif_brain_mask.nii.gz’ by FSL BET algorithm is also provided.
Thus, the HCP D-MRI data have already been co-registered to the structural (T1w) space. In the following, we are going to focus on segmentation based on T1 weighted image and registration of T1 weighted image onto the standard space (MNI152_T1) through FSL FAST segmentation algorithm and FLIRT/FNIRT registration algorithms, respectively.
This step takes a few seconds per image.
The original T1w and D-MRI images contain both skull and the brain. The BET (Smith 2002) algorithm in FSL can be used to extract brain 8000 from original images, which deletes non-brain tissues from an image of the whole head. In particular, extracted T1w images are needed for segmentation and registration. We use the (co-registered) T2w extracted brain mask provided by HCP preprocessing pipeline (‘nodif_brain_mask.nii.gz’) and apply that to the T1 image to create a T1w extracted brain. The rationale to use T2w extracted brain mask is because T2w image provides better contrasts between brain tissues and non-brain tissues.
Apply T2w extracted brain mask to T1w
Here we use the fslmaths tool to multiply a binary mask (the T2w extracted brain mask ‘nodif_brain_mask.nii.gz’) with an image (the original T1w image ‘T1w_acpc_dc_restore_1.25.nii.gz’).
The following is the shell code:
fslmaths "/user_path/T1w_acpc_dc_restore_1.25.nii.gz" -mul
"/user_path/nodif_brain_mask.nii.gz"
"/user_path/T1w_acpc_dc_restore_1.25_brain.nii.gz"
The following is the corresponding R wrapper function:
bet_w_fslmaths<-function(T1w, mask, outfile, intern=FALSE, verbose=TRUE, retimg=T, ...){
cmd <- get.fsl()
if (retimg) {
if (is.null(outfile)) {
outfile = tempfile()
}
} else {
stopifnot(!is.null(outfile))
}
T1w = checkimg(T1w, ...)
mask = checkimg(mask, ...)
outfile = checkimg(outfile, ...)
outfile = nii.stub(outfile)
cmd <- paste0(cmd, sprintf("fslmaths \"%s\" -mul \"%s\" \"%s\"",
T1w, mask, outfile))
if (verbose) {
message(cmd, "\n")
}
res = system(cmd, intern = intern)
ext = get.imgext()
outfile = paste0(outfile, ext)
return(res)
}
Usage:
bet_w_fslmaths(T1w = paste0(user_path,'T1w_acpc_dc_restore_1.25.nii.gz'),
mask = paste0(user_path,'nodif_brain_mask.nii.gz'),
outfile = paste0(user_path,'T1w_acpc_dc_restore_1.25_brain.nii.gz'))
This step takes ~ 4 minutes per image.
FAST segmentation: The FAST algorithm (Zhang et al. 2001) classifies each voxel in the brain into different tissue types (e.g. CSF – cerebrospinal fluid, GM – grey matter, WM – white matter) from various image sources (e.g., T1w, T2w). Since T1w images provide better contrasts between white matter and grey matter, we apply FAST to the T1w extracted brain (‘T1w_acpc_dc_restore_1.25_brain.nii.gz’) from Step 1.
fast(file = paste0(user_path,'T1w_acpc_dc_restore_1.25_brain.nii.gz'),
outfile = nii.stub(paste0(user_path,'T1w_acpc_dc_restore_1.25_brain.nii.gz')),
opts = '-N')
**Outputs from FAST **:
-
‘T1w_acpc_dc_restore_1.25_brain_seg.nii.gz’: binary segmentation (all classes in one image): e.g. 1 – CSF, 2 – GM, 3 –WM if the input is T1w image with 3 classes.
-
’T1w_acpc_dc_restore_1.25_brain_pve*.nii.gz’: one partial volume image for each class (pve0 – CSF, pve1 – GM, pve2 – WM, if the input is T1w image with 3 classes). Each voxel has a value between 0 and 1 representing the proportion of tissue in the corresponding class.
White matter mask is created by binarising the white matter partial volume image (‘T1w_acpc_dc_restore_1.25_brain_pve2.nii.gz’) where voxels with positive white matter partial volume are included in the white matter mask.
In this step, the T1w image is registered to a standard space (here the T1-weighted MNI template MNI152_T1). We will apply linear registration by the FLIRT algorithm to register T1w to MNI152_T1, followed by the nonlinear registration by the FNIRT algorithm. Both brain extracted and non-extracted MNI152 template images are provided in the folder ‘/usr/local/fsl/data/standard/’.
This step takes ~10 seconds per image.
The linear registration tool FLIRT in FSL can perform both intra- (6 DOF) and inter-modal (12 DOF) brain image intensity-based registration. FLIRT takes extracted brain images as input and reference, respectively.
flirt(infile = paste0(user_path,'T1w_acpc_dc_restore_1.25_brain.nii.gz'),
reffile = '/usr/local/fsl/data/standard/MNI152_T1_2mm_brain.nii.gz',
omat = paste0(user_path,'org2std.mat'),
dof = 12,
outfile = paste0(user_path,'T1w_acpc_dc_restore_1.25_brain_flirt12.nii.gz'))
This step takes ~ 4.5 minutes per image.
The nonlinear registration tool FNIRT in FSL can only register images of the same modality. Hence we will need to first register the T1w image to the T1w MNI template (MNI152_T1). We also need to initialize the nonlinear registration by a linear (12 DOF) registration to get the orientation and size of the image close enough for the nonlinear registration. Therefore, we need to first run the linear registration tool FLIRT. Moreover, FNIRT uses the original image instead of the brain extracted version for both input and reference, so that any errors in brain extraction do not influence the local registration.
Specifically, FNIRT takes the transformation matrix (‘org2std.mat’ specified in ‘–aff’) from FLIRT output (Step 3.1: affine transformation with 12 DOF), the original T1w image, and non brain extracted (i.e., with skull) MNI152_T1 template.
opt_fnirt=paste0(' --aff=', user_path, 'org2std.mat',
' --config=/usr/local/fsl/etc/flirtsch/T1_2_MNI152_2mm.cnf',
' --cout=', user_path, 'org2std_coef.nii.gz',
' --fout=', user_path, 'org2std_warp.nii.gz')
fnirt(infile = paste0(user_path, 'T1w_acpc_dc_restore_1.25.nii.gz'),
reffile = "/usr/local/fsl/data/standard/MNI152_T1_2mm.nii.gz",
outfile = paste0(user_path, 'T1w_acpc_dc_restore_1.25_fnirt.nii.gz'),
opts = opt_fnirt)
Outputs from FNIRT:
-
‘T1w_acpc_dc_restore_1.25_fnirt.nii.gz’: the transformed image.
-
–cout ‘org2std_coef.nii.gz’: the spline coefficient and a copy of the affine transform.
-
–fout ‘org2std_warp.nii.gz’: actual warp-field in the x,y,z directions.
Step 4 – From Standard Space to Native Space
In Step 3, we conduct registration which transforms an image to a standard template space. Here, we derive the inverse transformation from a standard space to a native space. This is useful for moving masks from a standard space template to the native space. We will use the invwarp and applywarp functions in FSL.
Step 4.1 Invert a transformation by invwarp
This step takes ~ 1 minute per image.
Suppose we want to invert the warp-field (‘org2std_warp.nii.gz’) from the FNIRT registration output. Then the original T1w image ‘T1w_acpc_dc_restore_1.25.nii.gz’ is used as reference and the output is stored in ‘std2org_warp.nii.gz’. The following is the shell code:
invwarp(reffile=paste0(user_path,'T1w_acpc_dc_restore_1.25.nii.gz'),
infile=paste0(user_path,'org2std_warp.nii.gz'),
outfile=paste0(user_path,'std2org_warp.nii.gz'))
The following is the corresponding R wrapper function:
invwarp<-function (reffile, infile, outfile, intern=FALSE, opts='', verbose=TRUE, retimg=T, ...)
{
cmd <- get.fsl()
if (retimg) {
if (is.null(outfile)) {
outfile = tempfile()
}
}
else {
stopifnot(!is.null(outfile))
}
infile = checkimg(infile, ...)
reffile = checkimg(reffile, ...)
outfile = checkimg(outfile, ...)
outfile = nii.stub(outfile)
cmd <- paste0(cmd, sprintf("invwarp --ref=\"%s\" --warp=\"%s\" --out=\"%s\" %s",
reffile, infile, outfile, opts))
if (verbose) {
message(cmd, "\n")
}
res = system(cmd, intern = intern)
ext = get.imgext()
outfile = paste0(outfile, ext)
return(res)
}
Step 4.2: Apply a transformation to an image by applywarp
This step takes ~ 10 seconds per image.
Suppose we want to move a mask on a template space to the native space. The following is the shell code:
fsl_applywarp(infile = paste0(user_path,'mask_on_template.nii.gz'),
reffile = paste0(user_path,'T1w_acpc_dc_restore_1.25.nii.gz') ,
outfile = paste0(user_path,'mask_on_original_space.nii.gz'),
warpfile = paste0(user_path,'std2org_warp.nii.gz'))
In the following, we first chose the Superior Longitudinal Fasciculus (SLF) masks (probabilistic masks on two hemispheres: SLF_L – 41694 voxels, SLF_R – 38386 voxels; brighter color corresponds to higher probability of being on SLF) according to the JHU White-Matter Tractography Atlas (Wakana et al. 2007, Hua et al. 2008) on the MNI152_T1_2mm template space (left panel) using FSLeyes. We then mapped these masks back to the native T1w space of one HCP subject (right panel) using the applywarp function. We will later use these masks as both seeding and terminating masks in the DiST tractography algorithm for SLF reconstruction (Section 4). Moreover, binary masks (1 – white color) from AutoPtx will be used for further streamline selection of the tractography results to better dissect SLF (Section 4). The binary masks are situated at the margins of the portion of the probabilistic masks where the probability of being on SLF is high (indicated by bright color).
Using FSLeyes and FSL atlases and templates to create masks is illustrated in the Appendix A.1.
Here we describe how to reconstruct the fibers of SLF and derive a lateralization score for each subject. We will then relate the lateralization score to gender and handedness through a two-way ANOVA model.
The steps include: For each subject, on the native subject space
-
FOD estimation: Obtain the BJS FOD estimator for each voxel within the probabilistic SLF masks;
-
Peak detection: Identify peak(s) of the estimated FODs;
-
Tractography: Apply the DiST tracking algorithm using the probabilistic SLF masks as both the seeding mask and the terminating mask;
-
Streamline selection: Select streamlines from the tractographic reconstructed tracks that are passing through the binary SLF masks at both ends;
-
Feature extraction: Define a lateralization score as the (relative) difference between the numbers of (selected) streamlines of the left- and right- hemisphere SLF.
Moreover, both FOD estimation and tractography are confined within the white matter voxels (obtained through the white matter segmentation preprocessing step).
These steps take ~ 20 minutes per 100k voxels.
For each subject, we estimated FOD for voxels within the probabilistic SLF masks (from Step 4 of the preprocessing) on the native subject space. We then identified the peak(s) of the estimated FODs by a peak detection algorithm (Yan et al., 2018). Moreover, non-white matter voxels within these masks are automatically specified as being isotropic and thus has no direction. The peak detection step associates each voxel with either none, one or multiple direction(s) and its results will be used as inputs for the DiST tracking algorithm.
This step takes ~ 1h for a 40k ROI.
Here we applied the DiST tracking algorithm (Wong et al., 2016) which is a deterministic tractography algorithm and can handle zero or multiple directions within one voxel and thus is suitable for crossing fiber regions. Moreover, we used the probabilistic masks for SLF (one on each hemisphere) from the JHU White-Matter Tractography Atlas as both the seeding mask and the terminating mask, meaning that tracking starts from every (white-matter) voxel within these masks and trajectories will be terminated while leaving the SLF region specified by these masks. Another stopping criterion we used is when there is no viable voxels within two steps, where non-viable voxels are those leading to trajectory bending more than 60 degrees or being isotropic (e.g., a non-white matter voxel).
The above regional-seeding approach is suitable for extracting a specific pathway (here SLF) or mapping tracts from a specific region. One advantage of the regional-seeding approach to the whole-brain-seeding approach is that the former is computationally much less intensive and scales better to processing large number of subjects/images. The regional-seeding approach may also take advantage of existing knowledge in brain anatomy. A potential disadvantage of a regional-seeding approach is to have incomplete track reconstruction. This can be mitigated by using anatomically informed masks such as those from a white matter atlas as we have done here.
One common criterion for streamline selection is to only retain tracks longer than a certain length (a commonly used threshold is 10mm). The rationale is that shorter tracks are unreliable. Moreover, as can be seen from the orientation color map below, the SLF region crosses with the corticospinal tract (indicated by blue-color). As a result, the reconstructed fibers contain not only those of SLF, but also some of CST.
To better dissect SLF from the initial tractography results, we used binary masks from AutoPtx to conduct streamline selection where only tracks (streamlines) that pass through AutoPtx binary masks at both ends are retained. The plot below shows SLF reconstruction (after streamline selection) of one HCP subject, using whole-brain-seeding (left panel), whole-brain-seeding with the white matter mask (middle panel) and regional-seeding with the white matter mask (right panel). As can be seen there, the tractography results are visually similar and regional-seeding does not lose too many tracks.
After tractography and streamline selection, various brain structural connectivity related features can be extracted including the number of streamlines, the lengths of streamlines, etc. Here we focused on the difference between the left- and right- hemisphere SLF for the purpose of investigating potential lateralization of SLF and its association with gender and handedness.
For each subject, we calculate a lateralization score (LS) based on
the relative difference between the numbers of selected streamlines from
the left- and right- hemisphere SLF, respectively:
Here, the denominator serves the purpose of normalization so that the LS from subjects with different brain sizes are comparable. As can be seen from the plot in Section 5.2, the LS is uncorrelated with the (relative) difference between the numbers of voxels in the left- and right- hemisphere SLF masks. A similar score was used by Catani et al 2007 for studying lateralization of the language pathway.
This section describes how to select region of interest (ROI) masks on the template space using FSLeyes. FSLeyes can be installed as part of FSL, or as a standalone software. A quick introduction of FSLeyes is available at https://fsl.fmrib.ox.ac.uk/fslcourse/lectures/practicals/intro1/index.html and a more complete overview is available at https://fsl.fmrib.ox.ac.uk/fsl/fslwiki/FSLeyes.
Step 1 : Load the template space used in the registration step (here ‘MNI152_T1_2mm.nii.gz’). To load the template space image, in FSLeyes:
File -> Add standard -> Choose ‘MNI152_T1_2mm.nii.gz’
Step 2 : Open the Atlas Panel:
Settings -> Ortho View 1 -> Atlas Panel
Step 3: In Atlas Panel (at the bottom of the window), choose an atlas and ROIs (here JHU White Matter Tractography Atlas and SLF-L, SLF-R, respectively). The selected ROIs will be overlayed to the template image.
Step 4: Click the button (lower left corner, highlighted by red) to save the mask(s) of the selected ROI(s) as .nii.gz file(s). These mask files will be warped back to subject native spaces.
