OPC UA Gateway

Do you need to access data from your OPC UA servers from web applications or IT systems easily and securely? This Gateway acts as a robust bridge, offering a modern REST API and advanced monitoring over OPC UA.

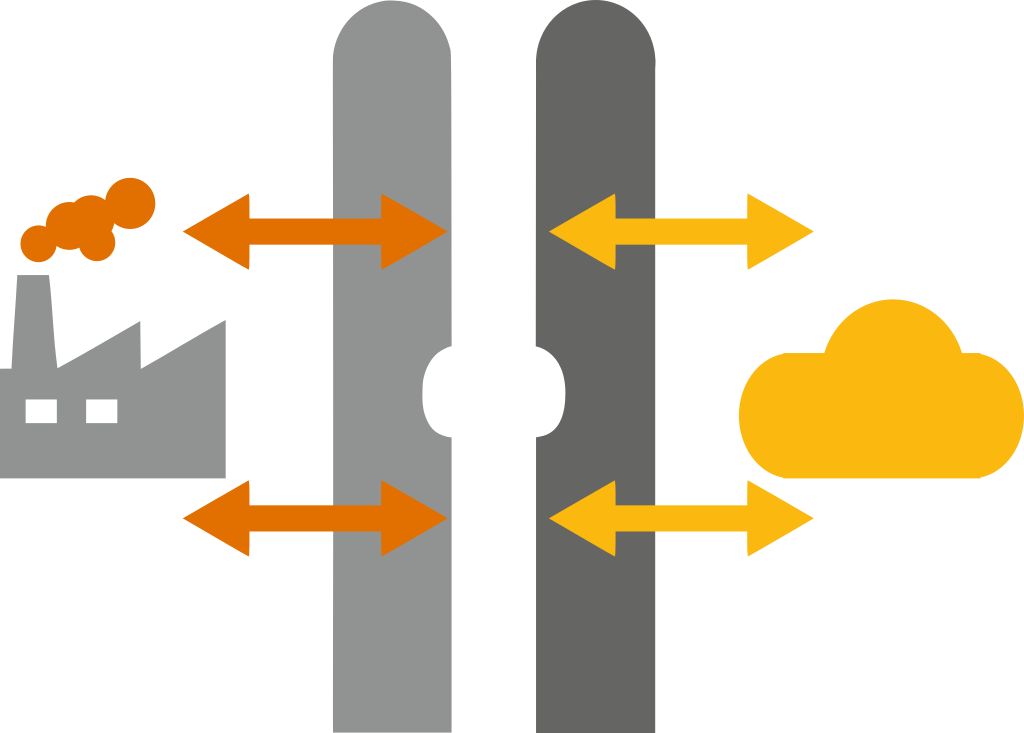

Simplified Architecture

graph TD
    A[OPC UA Server] -- Secure Connection --> B(OPC UA Gateway);
    B -- REST API --> D[Web Application];
    B -- REST API --> E[Python/Node Script];
    B -- REST API --> F[IoT Platform];
    B -- REST API --> G[Kepware IoT GW Client];
    subgraph Consumer Clients
        direction LR %% Force internal layout if necessary %%
        D
        E
        F
        G
    end

Why Use This Gateway?

Simplifies OPC UA Access: Forget the complexities of the OPC UA protocol. Interact using a simple REST API.
IT/OT Integration: Facilitates the connection between the operational technology (OT) world and information technology (IT) systems.
Centralized Security: Manage OPC UA connection security and API security in one place.
Standard Monitoring: Use SNMP (v1/v2c/v3) and/or the REST API to monitor the gateway's status and performance.
Compatibility: /iotgateway endpoints designed to ease migration from or coexistence with Kepware IoT Gateway.
Open Source: Completely free, open-source code (MIT License) with the possibility to contribute.
Modern and Lightweight: Built with Node.js, ideal for efficient deployments.

Common Use Cases

Visualize production data from PLCs (via OPC UA) on web dashboards (Grafana, etc.) in real-time.
Integrate OPC UA alarms with ticketing systems, databases, or notification services (Email, Slack).
Store historical process data from a SCADA system in time-series databases (InfluxDB, TimescaleDB).
Allow scripts (Python, Node.js) to read/write data in control systems in a controlled and secure manner.
Migrate client applications that used Kepware IoT Gateway to an open-source solution.

Quick Start (Docker)

The fastest and recommended way to run the gateway using Docker and the official Docker Hub image:

Create docker-compose.yml file: Create a file named docker-compose.yml in a folder of your choice with the following content:

version: '3.8'
services:
  opcua-gateway:
    image: exacross/opcua-gateway:latest # Use the image from Docker Hub
    container_name: opcua-gw
    ports:
      - '3000:3000' # Map host port to container port
    env_file:
      - .env # Load environment variables from .env file
    restart: unless-stopped
    # Optional: Mount volume for certificates if using secure modes
    # volumes:
    #   - ./certificates:/app/certificates

Create .env file: In the same folder where you created docker-compose.yml, create a file named .env. Copy and paste the necessary configuration variables from the Environment Variables section. At a minimum, you need to configure:

# Required for basic connection
OPC_ENDPOINT=opc.tcp://YOUR_OPCUA_SERVER:4840

# Required for API security (choose one or both)
API_KEY=A_SECURE_API_KEY_HERE
# or
AUTH_USERNAME=your_basic_user
AUTH_PASSWORD=your_basic_password

# Recommended (adjust as needed)
LOG_LEVEL=info
LOG_TO_CONSOLE=true
# ... other variables you need to modify ...

Replace the example values with your actual configuration.

Start the Container: Open a terminal in the folder where you created the files and run:
```
docker-compose up -d
```
Docker will automatically download (pull) the exacross/opcua-gateway:latest image if you don't have it locally and then start the container.

Verify Status: Wait a few seconds and check the health endpoint:

curl http://localhost:3000/health
# You should see a JSON response indicating "UP" and "CONNECTED" status

Done! The gateway is running and accessible at http://localhost:3000, using the official image and your local configuration.

Main Features

🔐 Secure Connection: Support for different OPC UA security modes and policies.
🚀 Modern REST API: Intuitive endpoints for reading and writing OPC UA values.
🤝 Kepware Compatibility: /iotgateway endpoints for easy integration/migration.
🔗 Connection Pooling: Efficient management of OPC UA sessions.
🔄 Automatic Reconnection: Robust handling of disconnections with configurable retries.
🛡️ Complete API Security: Dual authentication (Basic/API Key), Rate Limiting, CORS, Helmet.
📊 Advanced Monitoring: Detailed metrics via REST API and SNMP (v1/v2c/v3) with Zabbix template.
📝 Configurable Logging: Log levels, output to console and/or files.
⚙️ Modular and Maintainable: Clear and organized project structure.
🐳 Easy Deployment: Ready to use with Docker and Docker Compose.
📄 Open Source (MIT): Freedom to use, modify, and distribute.

Installation and Deployment

Using Docker (Recommended)

See the Quick Start (Docker) section.

To build the image manually:

docker build -t opcua-gateway .

To run the container manually (make sure you have your .env file ready):

docker run -d \
  -p 3000:3000 \
  --name opcua-gw \
  --env-file .env \
  opcua-gateway

Native Development Setup

# 1. Clone the repository (if you haven't already)
git clone https://github.com/tinroad/opcua-gateway
cd opcua-gateway

# 2. Install dependencies
npm install

# 3. Configure environment variables
cp .env.example .env
# Edit .env with your development settings

# 4. Start development server (with nodemon for auto-reloading)
npm run dev

Native Production Deployment

# 1. Make sure you have Node.js >= 14.0.0 on your server

# 2. Clone or copy the source code to your server

# 3. Install ONLY production dependencies
npm install --production

# 4. Configure environment variables in `.env`
# MAKE SURE TO USE SECURE CREDENTIALS AND SETTINGS FOR PRODUCTION!

# 5. Start the server (recommended to use a process manager like pm2)
npm start
# Or with pm2:
# pm2 start src/server.js --name opcua-gateway

Configuration

Environment Variables

The gateway is fully configured via environment variables defined in a .env file in the project root. Copy .env.example to get started.

# === Core OPC UA Configuration ===
OPC_ENDPOINT=opc.tcp://127.0.0.1:4840       # OPC UA Server URL
OPC_SECURITY_MODE=1                        # 1:None, 2:Sign, 3:SignAndEncrypt
OPC_SECURITY_POLICY=None                   # None, Basic128Rsa15, Basic256, Basic256Sha256, Aes128_Sha256_RsaOaep, Aes256_Sha256_RsaPss
OPC_NAMESPACE=2                            # Default namespace for Node IDs (if not specified)
OPC_APPLICATION_URI=urn:CLIENT:NodeOPCUA-Client # Client application URI

# === OPC UA Certificate Configuration (only for secure modes > 1) ===
OPC_CERTIFICATE_FILE=./certificates/client_cert.pem
OPC_PRIVATE_KEY_FILE=./certificates/client_key.pem
OPC_TRUSTED_FOLDER=./certificates/trusted     # Trusted server certificates
OPC_REJECTED_FOLDER=./certificates/rejected   # Rejected certificates

# === OPC UA Connection Configuration ===
CONNECTION_RETRY_MAX=5                     # Max retries per connection attempt
CONNECTION_INITIAL_DELAY=1000              # Initial delay before first attempt (ms)
CONNECTION_MAX_RETRY=10                    # Global max reconnection attempts (-1 for infinite)
CONNECTION_MAX_DELAY=10000                 # Max delay between retries (ms)
CONNECTION_RETRY_DELAY=5000                # Base delay between retries (ms)

# === Web Server Configuration ===
SERVER_PORT=3000                           # Port the gateway will listen on

# === API Security Configuration ===
API_KEY=your_api_key_here                  # Secret key for X-API-Key authentication
AUTH_USERNAME=admin                        # User for Basic Authentication
AUTH_PASSWORD=your_secure_password         # Password for Basic Authentication
ALLOWED_ORIGINS=http://localhost:3000,[https://your-frontend-domain.com](https://your-frontend-domain.com) # Allowed CORS origins (comma-separated)
CORS_MAX_AGE=600                           # CORS preflight cache time (seconds)
RATE_LIMIT_WINDOW_MS=900000                # Rate limit time window (15 minutes default)
RATE_LIMIT_MAX=100                         # Max requests per IP in the window

# === Logging Configuration ===
LOG_LEVEL=info                             # Log level: error, warn, info, http, verbose, debug, silly
LOG_FILE_ERROR=error.log                   # File for error logs
LOG_FILE_COMBINED=combined.log             # File for all logs
LOG_TO_CONSOLE=true                        # Log to console? (true/false)

# === SNMP Configuration ===
ENABLE_SNMP=true                           # Enable SNMP agent (true/false)
SNMP_PORT=161                              # SNMP agent port
SNMP_COMMUNITY=public                      # Community for SNMP v1/v2c
SNMP_VERSION=3                             # SNMP version: 1, 2c, or 3
# --- SNMPv3 Configuration (if SNMP_VERSION=3) ---
SNMP_SECURITY_NAME=opcgwuser               # Main SNMPv3 user
SNMP_SECURITY_LEVEL=authPriv               # Level: noAuthNoPriv, authNoPriv, authPriv
SNMP_AUTH_PROTOCOL=SHA256                  # Auth protocol: MD5, SHA1, SHA224, SHA256, SHA384, SHA512
SNMP_AUTH_KEY=opcgw_auth_key               # Auth key (min 8 chars)
SNMP_PRIV_PROTOCOL=AES128                  # Privacy protocol: DES, AES128, AES192, AES256, AES192C, AES256C
SNMP_PRIV_KEY=opcgw_priv_key               # Privacy key (min 8 chars)
# --- Additional SNMPv3 User (Optional) ---
# SNMP_USER_2_NAME=zabbix
# SNMP_USER_2_LEVEL=authPriv
# ... (full configuration for user 2)

Detailed Security

Security is paramount. This gateway implements several layers:

API Authentication Methods

You can protect the /iotgateway and /api endpoints using one or both methods simultaneously:

Basic Authentication:
- Uses username and password (AUTH_USERNAME, AUTH_PASSWORD).
- Ideal for quick tests or human access.
- Example with curl:
```
curl -X GET "http://localhost:3000/iotgateway/read?ids=ns=2;s=MiVariable" \
     -u "admin:your_secure_password"
```
API Key Authentication:
- Uses a secret key (API_KEY) sent in the X-API-Key header.
- Recommended for machine-to-machine (M2M) communication.
- Example with curl:
```
curl -X GET "http://localhost:3000/iotgateway/read?ids=ns=2;s=MiVariable" \
     -H "X-API-Key: your_api_key_here"
```

Rate Limiting

Protects against brute force and DoS attacks by limiting the number of requests per IP (RATE_LIMIT_WINDOW_MS, RATE_LIMIT_MAX).
Responds with 429 Too Many Requests if the limit is exceeded.

CORS Protection

Controls which origins (web browsers) can make requests to the API (ALLOWED_ORIGINS).
Configurable to allow credentials and specific methods.

Security Headers (Helmet)

Automatically applies various security-related HTTP headers to protect against common attacks (XSS, clickjacking, etc.).

Metrics and Monitoring

Gain visibility into the gateway's performance and status:

Access via REST API

Endpoints under /api/metrics (require authentication) expose metrics in JSON format:

/api/metrics: All metrics.
/api/metrics/opcua: OPC UA specific metrics.
/api/metrics/http: HTTP request metrics.
/api/metrics/system: System metrics (CPU, memory, etc.).

Access via SNMP

If ENABLE_SNMP=true, the gateway acts as an SNMP agent.

Supports SNMP v1, v2c, and v3.
Exposes metrics using OIDs under the enterprise base 1.3.6.1.4.1.12345.

SNMP Agent Configuration

Configure the version, port, community (v1/v2c), or security credentials (v3) using the SNMP_* environment variables.
SNMPv3 is recommended for production due to its enhanced security (authentication and encryption).

Monitoring with Zabbix

Simplify Zabbix integration!

Make sure ENABLE_SNMP is active in .env.

Generate the Zabbix XML template:

npm run generate:zabbix
# Options to customize SNMP version and security:
# node src/tools/generateZabbixTemplate.js --help

Import the generated tools/zabbix_template.xml file into your Zabbix server.
Add the gateway as a Host in Zabbix, configure the SNMP interface (IP, port, version, community/credentials), and link the imported template.

Available Metrics

Key metrics are monitored across three categories (non-exhaustive list):

OPC UA: Active connections, errors, retries, read/write latency.
HTTP: Request counts (by status code), errors, latency, rate limit blocks.
System: CPU usage, memory utilization, uptime.

Check the logs on startup with SNMP enabled or the source code for a detailed OID mapping.

API Endpoints

Read OPC UA values (`/iotgateway`)

GET /iotgateway/read?ids=<node-id1>,<node-id2>,...

Authentication: Basic Auth (-u user:pass) OR API Key (-H "X-API-Key: key").
Query Parameters:
- ids (required): One or more OPC UA Node IDs, comma-separated. (E.g., ns=2;s=MyVariable,ns=3;i=1001)

Successful Response (200 OK):

{
	"readResults": [
		{
			"id": "ns=2;s=MyVariable",
			"s": true, // Success (OPC UA status code)
			"r": "Good", // Reason / Status description
			"v": "123.45", // Read value
			"t": 1678886400000 // Timestamp (OPC UA source timestamp)
		}
		// ... more results
	]
}

Error Response (e.g., 400 Bad Request if ids is missing):
```
{
	"error": "Parameter 'ids' is required"
}
```

Write OPC UA values (`/iotgateway`)

POST /iotgateway/write
Content-Type: application/json

Authentication: Basic Auth OR API Key.

Request Body (JSON): An array of objects to write.

[
	{
		"id": "ns=2;s=MyVariable",
		"value": "NewValue"
		// "dataType": "String" // Optional: Specify OPC UA data type (e.g., Double, Int32, Boolean)
	},
	{
		"id": "ns=3;i=1002",
		"value": true,
		"dataType": "Boolean"
	}
	// ... more values to write
]

Successful Response (200 OK):

{
	"writeResults": [
		{
			"id": "ns=2;s=MyVariable",
			"success": true,
			"message": "Good" // OPC UA status of the write operation
		}
		// ... more results
	]
}

Error Response (e.g., 400 Bad Request if body is invalid):
```
{
	"error": "Invalid or empty request body"
}
```

Other API Endpoints (`/api`)

These endpoints provide additional functionality or direct access (require authentication):

GET /api/opcua/status: OPC UA connection status.
GET /api/opcua/read/:nodeId: Direct read of a single node (URL-encoded ID).
POST /api/opcua/write/:nodeId: Direct write to a single node (URL-encoded ID, value in JSON body {"value": ...}).
GET /api/metrics/...: Detailed metrics endpoints.

Public Endpoint

GET /health: Basic health status of the gateway (no authentication required). Ideal for load balancers or service checks.

{
	"status": "UP",
	"opcClient": "CONNECTED", // or "DISCONNECTED", "CONNECTING"
	"opcEndpoint": "opc.tcp://127.0.0.1:4840",
	"time": 1678886500000
}

Project Structure

project/
├── src/
│   ├── config/         # Configuration files (central, CORS)
│   ├── services/       # Main business logic (OPC UA Service)
│   ├── middleware/     # Express Middlewares (Auth, Logging, Rate Limit)
│   ├── routes/         # API Route definitions (Express)
│   ├── utils/          # Utilities (Logger, etc.)
│   ├── tools/          # Tools (Zabbix template generator)
│   ├── app.js          # Express application setup
│   └── server.js       # Entry point, server start
├── certificates/         # OPC UA Certificates (client, trusted, rejected)
├── public/             # Static files (if any)
├── .env                # Environment variables (DO NOT version control)
├── .env.example        # Example environment variables
├── Dockerfile          # Docker image definition
└── docker-compose.yml  # Docker Compose service definition

Error Handling

Robust automatic reconnection to OPC UA with exponential backoff.
Detailed logging of OPC UA and HTTP errors.
Centralized middleware to catch Express application errors.
Consistent JSON error responses for the API (4xx/5xx).
- 401 Unauthorized: Authentication required or invalid.
- 403 Forbidden: Authenticated but not permitted (not currently applicable).
- 429 Too Many Requests: Rate limit exceeded.
- 400 Bad Request: Malformed request (missing parameters, invalid JSON).
- 500 Internal Server Error: Unexpected server error.
- 503 Service Unavailable: OPC UA connection error or other critical service failure.

Security Best Practices

Credentials: Use strong API keys and rotate them periodically. Use robust passwords for Basic Auth. Never commit the .env file!
HTTPS: In production, ALWAYS run this gateway behind a reverse proxy (Nginx, Traefik, Caddy) that handles HTTPS/TLS.
Network: Limit access to the gateway port (SERVER_PORT) only to necessary IPs/networks (firewall).
CORS: Configure ALLOWED_ORIGINS restrictively to only the frontend domains needing access.
Rate Limiting: Adjust limits (RATE_LIMIT_*) based on expected traffic to prevent abuse.
SNMPv3: If using SNMP in production, prefer SNMPv3 with authPriv for maximum security.
Updates: Keep dependencies (Node.js, npm libraries) updated to patch vulnerabilities.

Requirements

Node.js >= 14.0.0
Accessible OPC UA server on the network.
(Optional) Valid OPC UA certificates if using Sign or SignAndEncrypt security modes.
(Recommended) Docker and Docker Compose for easy deployment.

Code of Conduct

This project adheres to a Code of Conduct. By participating, you agree to abide by its terms.

Contributing

Contributions are welcome! If you want to help improve this project, here are some ideas:

Report bugs or suggest new features by creating a GitHub Issue.
Check the open issues, especially those tagged good first issue or help wanted.
Improve the documentation.
Submit Pull Requests with fixes or new features.

This project uses Conventional Commits for commit messages. This helps maintain a clean history and automatically generate changelogs. The basic format is:

<type>(<scope>): <description>

Where <type> can be feat, fix, docs, style, refactor, perf, test, build, ci, chore, revert, config.

Name		Name	Last commit message	Last commit date
Latest commit History 28 Commits
.github		.github
.husky		.husky
assets		assets
src		src
tools		tools
.dockerignore		.dockerignore
.env.example		.env.example
.gitignore		.gitignore
CHANGELOG.md		CHANGELOG.md
CODE_OF_CONDUCT.md		CODE_OF_CONDUCT.md
CONTRIBUTING.md		CONTRIBUTING.md
Dockerfile		Dockerfile
LICENSE		LICENSE
README.es.md		README.es.md
README.md		README.md
commitlint.config.js		commitlint.config.js
docker-compose.yml		docker-compose.yml
jest.config.js		jest.config.js
package.json		package.json
test-snmp-agent.js		test-snmp-agent.js
test-snmp-connection.js		test-snmp-connection.js

License

tinroad/opcua-gateway

Folders and files

Latest commit

History

Repository files navigation

OPC UA Gateway

Simplified Architecture

Why Use This Gateway?

Common Use Cases

Table of Contents

Quick Start (Docker)

Main Features

Installation and Deployment

Using Docker (Recommended)

Native Development Setup

Native Production Deployment

Configuration

Environment Variables

Detailed Security

API Authentication Methods

Rate Limiting

CORS Protection

Security Headers (Helmet)

Metrics and Monitoring

Access via REST API

Access via SNMP

SNMP Agent Configuration

Monitoring with Zabbix

Available Metrics

API Endpoints

Read OPC UA values (/iotgateway)

Write OPC UA values (/iotgateway)

Other API Endpoints (/api)

Public Endpoint

Project Structure

Error Handling

Security Best Practices

Requirements

Code of Conduct

Contributing

License

Author

Diego Morales

About

Topics

Resources

License

Code of conduct

Stars

Watchers

Forks

Releases 1

Packages 0

Contributors 2

Languages

Read OPC UA values (`/iotgateway`)

Write OPC UA values (`/iotgateway`)

Other API Endpoints (`/api`)

Packages
