Please read project wiki for details: https://github.com/joric/jorne/wiki
The keyboard layout is derived from Jian layout (just visually, there was no actual copying involved). Please buy Jian from its author, /u/KgOfHedgehogs, he's running a high quality commercial batch.
- jorne-classic-2.1-gerbers.zip (classic version, with mounting holes and ground planes)
- jorne-cherry-2.1-gerbers.zip (hotswap version with kailh hotswap sockets, fixed version with all LED holes)
- jorne-cherry-3.0-gerbers.zip (non-reversible PCB with kailh hotswap sockets and south facing switches)

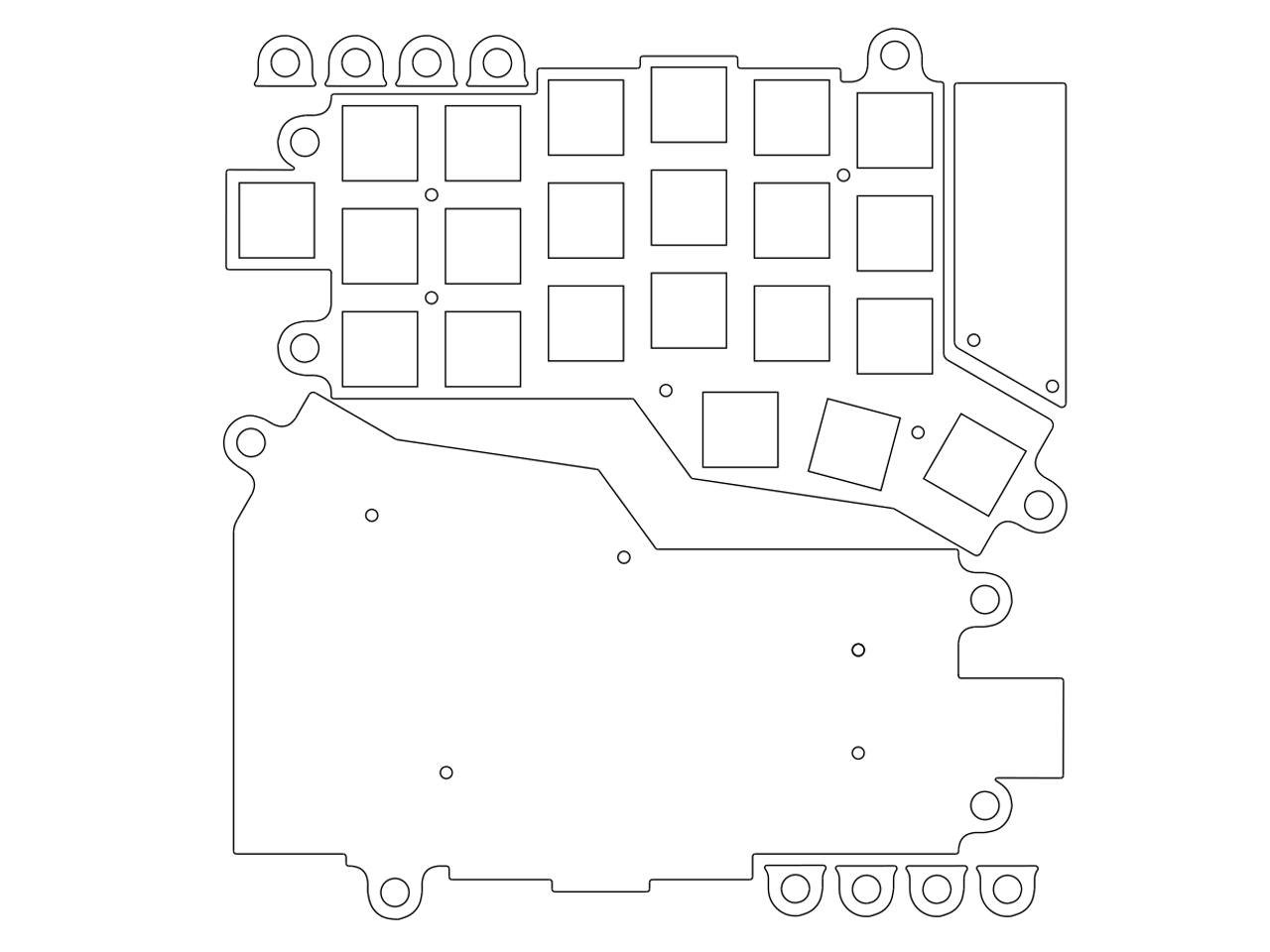

- jorne-simple.dxf (simple case, sheet size 154x154mm)
- jorne-tilted.dxf (tilting-tenting case, sheet size 156x165mm)
- jorne-simple-metal-plate.dxf (simple plate, 14 mm cutouts)
- jorne-tilted-metal-plate.dxf (tilting-tenting plate, 14 mm cutouts)
- jorne-simple-bottom.dxf (simple bottom plate, 153x92mm)
